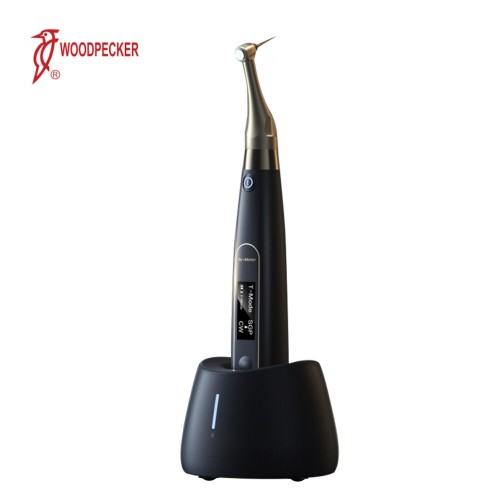

Ai-Motor , T-mode | Endo Motor

Description

Features:

Use watch winding motion; 90 degree clockwise and 90 degree counterclockwise up to the ledge.

• Use a pre-curved file

• Small up and down amplitudes of motion for the file to climb up the ledge

• Once file has bypassed the ledge, press the bottom again (without withdrawing the file).

•This then changes to a rotational mode and can quickly smooth the ledge without withdrawing the file.

• The speed and torque can be adjusted within the range of 100-2500RPM and 0.4Ncm - 5.0Ncm

 Also now with contra-angle handpiece for vertical motion.

The red and black editions have the same features and an additional contra-angle head with vertical can be purchased to ensure the ledges can be bypassed freely and safely without the need for manula insertion and withdrawal.

Customised reciprocating angle

• The Ai Endo motor has adjustable rotation angle in reciprocating mode.

• This is very useful when trying to negotiate challenging anatomy or bypassing separated instruments.

• 20º - 340º adjustment range.

• 10º adjustment intervals.

Mini contra-angle

• Easier preparation for posterior teeth or when access is challenging.

• Also consider control memory files which can be prebend to make access into the canals easier.

• 8.0mm diameter.

• 9.7mm height.

• 360º rotatable contra-angle, very useful function when using the apex locator.

Integrated apex locator mode delivers safety protection

• Auto start/stop at root canal orifice.

• Auto slowdown at narrow apex.

• Auto reverse/stop at apical stop.

• Integrated apex locator mode.

High performance brushless motor

• ~10x the service life of the brush motor

• Stable cutting can still be ensured at the narrow or curved apex.

• Reduce the risk of instrument separation and improve preparation efficiency.

Technical Specifications

• Speed: 100-2500RPM

• Torque: 0.4-5.0Ncm

• Charging mode: Wireless charging

• Battery Capacity: 2000mAh
