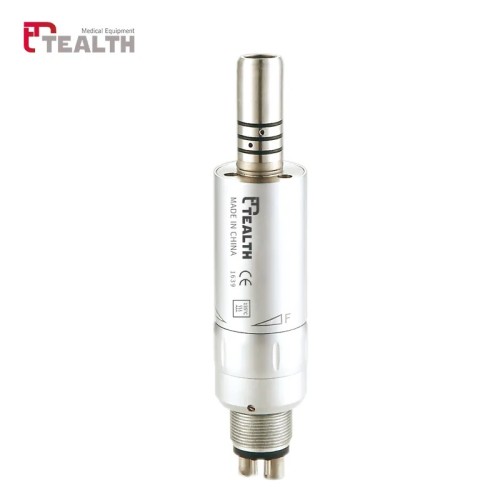

Internal irrigation 4 holes air motor

Internal irrigation 4 holes air motor | MIN-01C

Tealth

IQD 107200

Description

Water spray: Internal irrigation

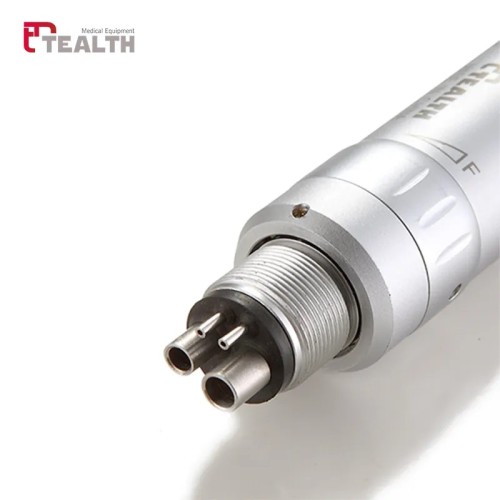

Connector: ISO strandard 4 holes, E-type

Separated air tube & water pipe, perfect cooling system.

Descriptions	E-type Low-speed 1: 1, internal cooling system
Specifications	1020-M4/1020-B2
Air pressure	392kPa
Atomized water pressure	200 kPa
Atomized air pressure	200 kPa
Chuck type	Push button/Manual Operation
Bur applicable	Φ2.334～2.350 mm
Noise	≤70dB

Handpiece inserting & removal :
Inserting
Insert the E-type handpiece onto the motor and turning all the way until it click to stop.
Removal
Grip both handpiece and motor respectively, pulling and separating.

dental air motor

Forward/Reverse Rotation :
1) Forward Rotation: Turn the FWD/REV change ring to“F”.
2) Reverse Rotation: Turn the FWD/REV change ring to “R”.
3) When the FWD/REV change ring is positioned in the middle of “F” and “R”, the drive air is interrupted and the motor does not rotate.
4) When FEW/REV change ring is positioned in F or R, the rotation speed is maximum.

dental unit

Maintenance & Care
After each treatment, sterilizing handpiece in autoclave according to the following steps:
1. Remove the bur, use brush to clean handpiece, then cleaning outside of handpiece with alcohol solution.
2. Lubricate handpiece.
3. Package into autoclaving pouch.
4. Autoclave the handpiece for 12 min at 135℃.
5. Dental handpieces cannot be soaked in a disinfectant with acidic liquid. it will seriously damage the bearings and handpiece internal components
6. Do not use an ultrasonic cleaner to clean the dental handpiece.
7. It is not recommended to repair the dental handpiece by little experience person. For repairing, please return to the factory or send to the designated after-sales service maintenance office.
