Description
Highlights:

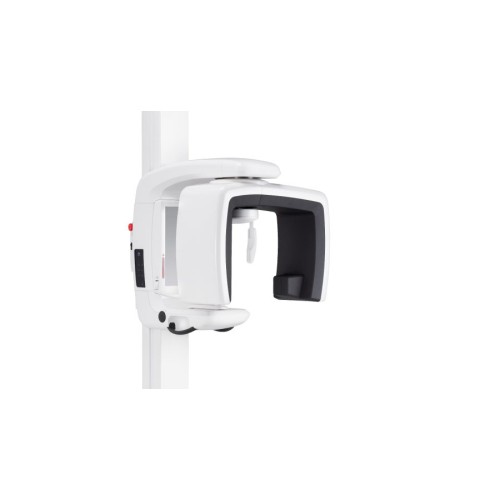

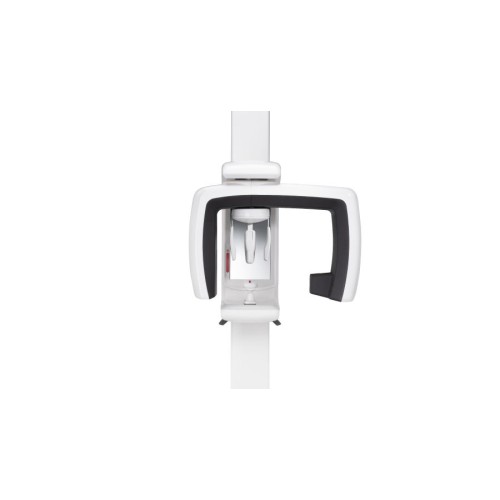

Veraview IC5 HD offers high speed, class-leading clarity, and low dose.
Depending on the diagnostic need, this unit offers a 5.5 second panoramic for a quick examination at the lowest dose, or a 10 second scan for a more detailed, high resolution image. Veraview IC5 HD is compact and lightweight. It offers fully automatic, simplified operation, CCD sensor technology, triple laser beams for easy positioning, and improved energy savings of up to 50%.
Features:
Select from two levels of speed and resolution
Depending on the diagnostic need, you can take a quick, 5.5 second panoramic for the lowest dose, or a 10 second scan for the ultimate, high resolution image.
High Speed
With an industry leading exposure time of 5.5 seconds, the Veraview IC5 is not only significantly faster than conventional film-based panoramic systems, but also requires much less radiation.
High Speed: only 5.5 seconds, 192μm, 1/6** X-Ray exposure
High Definition: 10 second exposure, 96 μm
High Definition
Pixel size is reduced 25% compared with the former model, so it produces superior images of a higher resolution.
High Speed: 5.5 seconds (192μm)
High Definition: 10 seconds (96μm)
* as of January 2010
**Compared to a standard panorama image using film and made by Morita’s Veraviewepocs (16 seconds, 75kV, & 9mA)
The combination of DDAE (Digital Direct Auto Exposure) and AIE (auto image enhancement) produces high quality images with optimum contrast and uniform density.
Digital Direct Automatic Exposure (DDAE)
DDAE controls the X-ray tube current (mA) simultaneously by detecting X-rays passing through the patient. This improves the dynamic range, and, along with Automatic Exposure (AE), results in exceptionally clear images with the best possible contrast and even density. The automatic exposure level can be adjusted to meet your individual requirements.
Standard Panoramic
Clear, sharp images with a wide image layer. The thick,
specifically designed image
layer accommodates all possible variations of dental arch shapes and sizes to produce extremely clear and sharp images.
Pedodontic Panoramic at Reduced Radiation

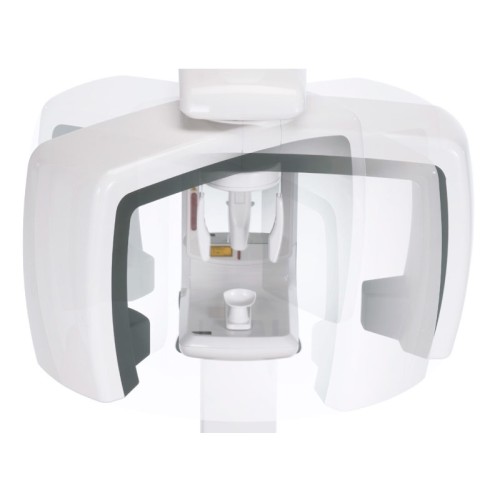

For examinations of children or people with small jaws, the rotation range of the arm is diminished, thereby further reducing radiation exposure.
TMJ Quadruple Exposures: for Open and Closed Condyle Views
Four separate shots of condyle fit onto one image. In each case, two sets of rotation for left and right condyle head for open and closed condition.
Clinical images provided by: Dr. Bruno Azevedo, Director of Radiology and Imaging Sciences, University of Louisville School of Dentistry and Kitasenju Radist Dental Clinic, i-View Imaging Center, Japan.
Specifications:
| Trade name: | Veraview IC5 HD |
| Model: | XDP1 |
| Input voltage: | EX-1: AC 100V/115V/120V 50/60 Hz EX-2: AC 220/230/240V 50/60 Hz |
| Power consumption: | 0.85 kVA |
| Dimensions Main unit: |
W 890 x D 970 x H 2350 |
| Weight: | Approx. 110 kg |
| X-ray generator Tube voltage: |
60-70kV (depending on exposure mode) |
| Tube current: | 1-7.5mA (depending on exposure mode) |
| Effective focal spot: | 0.5 mm |
| Panoramic image Exposure time: |
High speed mode: Approx. 5.5 sec. High definition mode: Approx. 10 sec. |
| Imaging programs: | Standard Panoramic Pedodontic Panoramic TMJ Quadruple Image |
- Always have patients wear X-ray protective gear.
（Unit: mm）

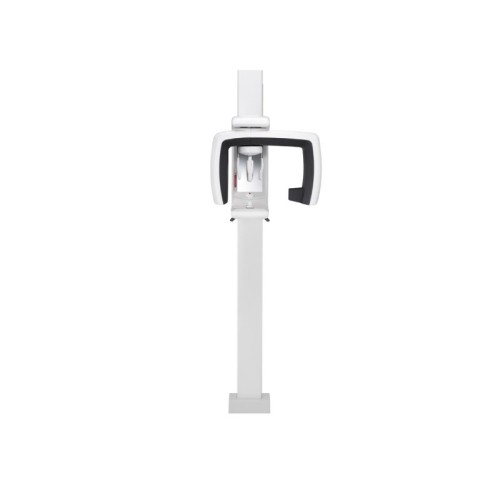

Small Base

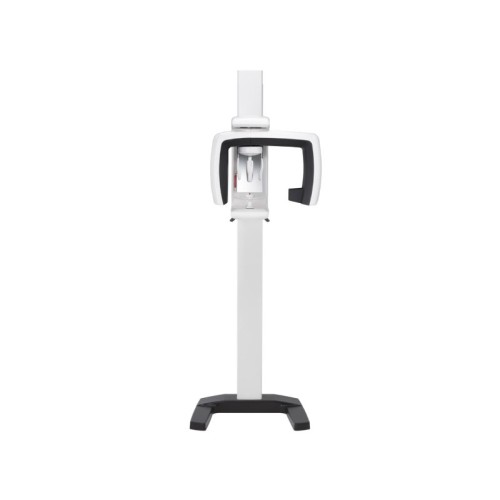

Standard Base
